FUSE HOLDER FOR 6 ATO FUSES (1PC)

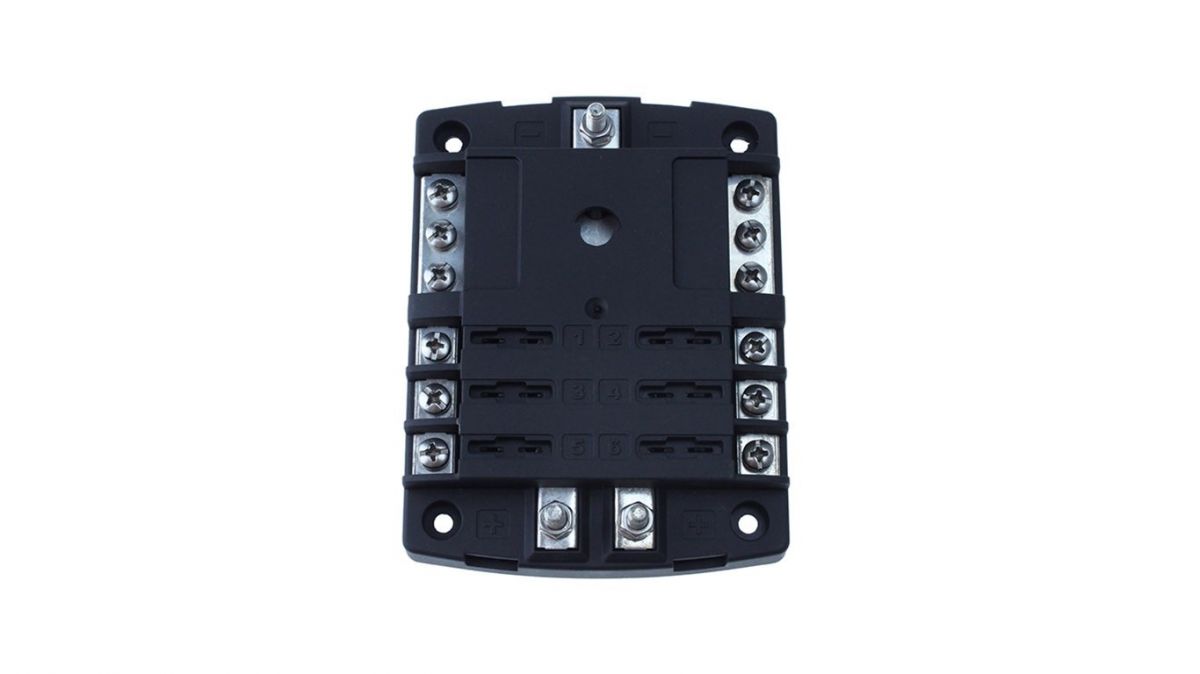

Fuse holder for 6 fuses, consisting of 2 positive and 1 negative rail.
Suitable for the automotive & amp navy industry.

Positive circuit A: 1 x common rail and 6 x separate circuits protected by standard lont feels
positive circuit B: 1 x common rail and 6 x individual circuits protected by standard lont feudes
negative circuit: 1 x common rail (not merged) plus 6 x separate connecting blocks

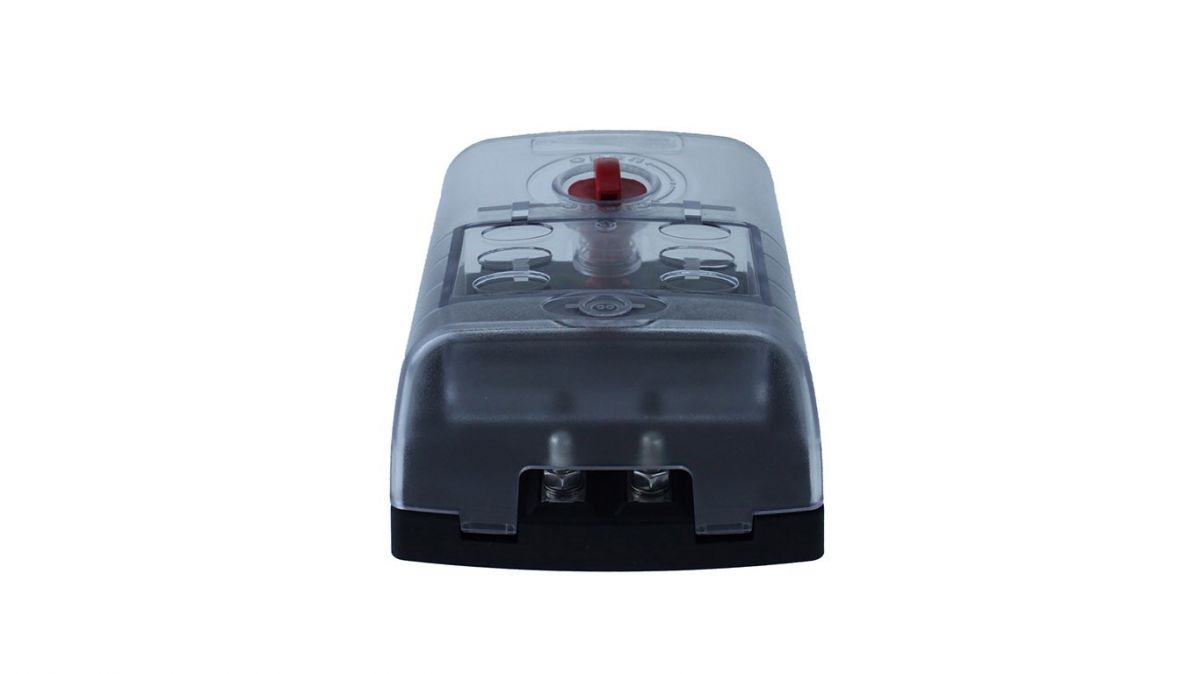

The transparent cover is provided with a rotation and locking mechanism and sunken sides for easy opening with & eacute; & EACUTE; n hand.
There is room in the lid for 2 spare fuses and label recesses on the outside for simple identification of the circuit.

accepts our range of standard standard fuses, which are available separately.

According to industry stand mounting holes, this system can be mounted afterwards to replace other popular units.

The built-in negative bus bar can make this device popular on boats, where the ground returns from each load to be collected together and has to run back to the battery.

Specification

Voltage (max): 32 DC
Input terminal Rating: M5 threads (max. 100a)
Review Output connection: 30A / 30A max. Tax per circuit
Torque Rating: 20 in-1b (2 , 25 nm) Max
Mounting Counter Rating: 8 in-Lb (0.9 nm) Max
Temperature Review: -25 ° C to + 85 ° C
Material: Cover PC (Clear)
Housing and basic: PBT (black)
Terminal: Tinned copper
Rating: 100A MAX
Dimensions: L1 B95 x D59 mm (including lid)
