FUSE HOLDER FOR 12 ATO FUSES (1PC)
Article in the following categories

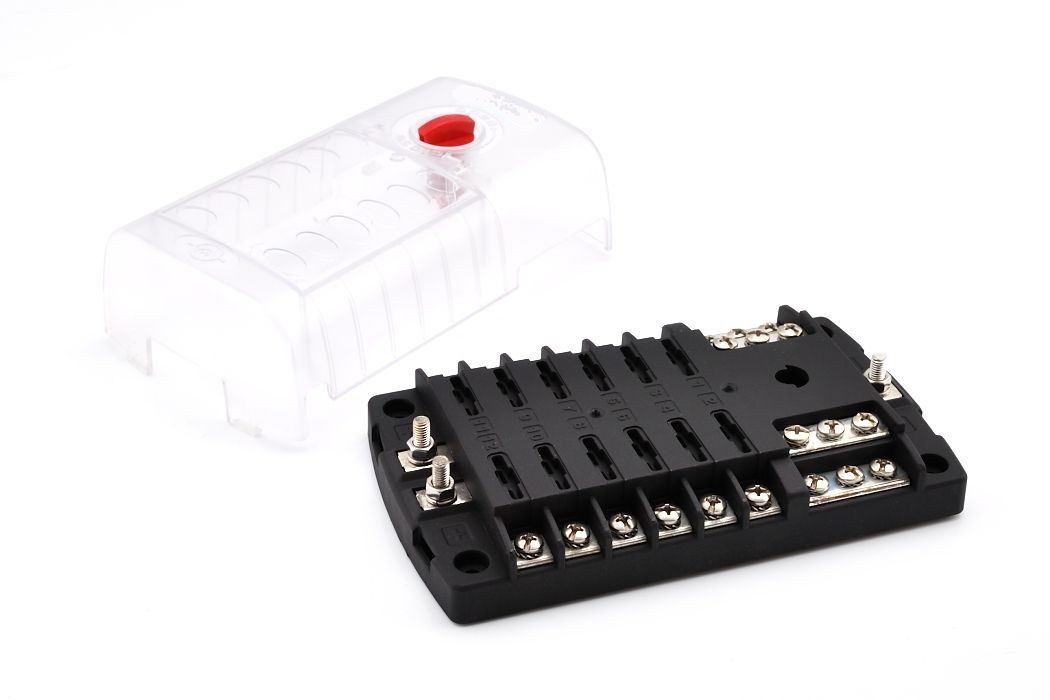

Fuse box for 12 fuses, consisting of 2 positive and 1 negative rail.
Suitable for the automotive & amp navy industry. P>
Positive circuit A: 1 x common rail and 6 x separate circuits protected by standard lont feels
positive circuit B: 1 x common rail and 6 x individual circuits protected by standard lont feudes
negative circuit: 1 x common rail (not merged) plus 12 x separate connecting blocks

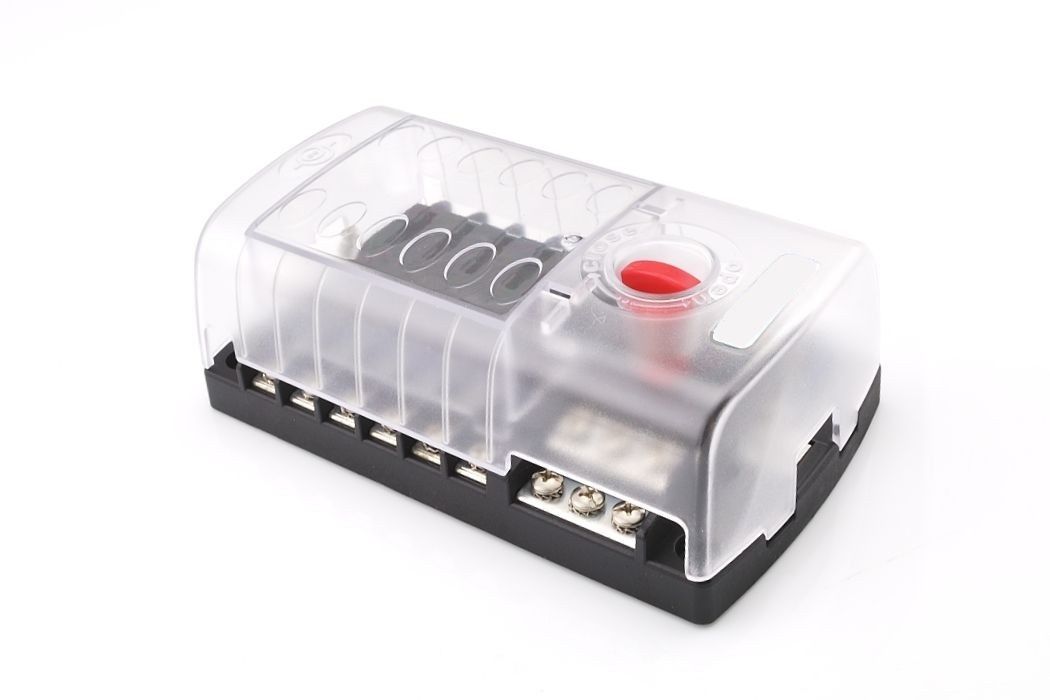

The transparent cover is provided with a rotation and locking mechanism and recessed sides for easy opening with & eacute; & EACUTE; n hand. There is room in the lid for 2 spare faiths and label recesses on the outside for simple identification of the circuit. P>
accepts our assortment of standard norms, which are available separately. P>
According to industry stand mounting holes, this system can be mounted afterwards to replace other popular units. P>
The built-in negative bus bar can make this device popular on boats, where the ground returns from each load to be collected together and has to run back to the battery. P>
Specification p>
Voltage (max): 32 DC
Input Terminal Rating: M5 threads (max. 160A)
Review Output connection: 30A / 30A max. Tax per circuit
Torque Rating: 20 in-1b (2 , 25 nm) Max
Mounting Counter Rating: 8 in-Lb (0.9 nm) Max
Temperature Review: -25 ° C to + 85 ° C
Material: Cover PC (Clear)
Housing and basic: PBT (black)
Terminal: Tinned Copper
Rating: 100A Max

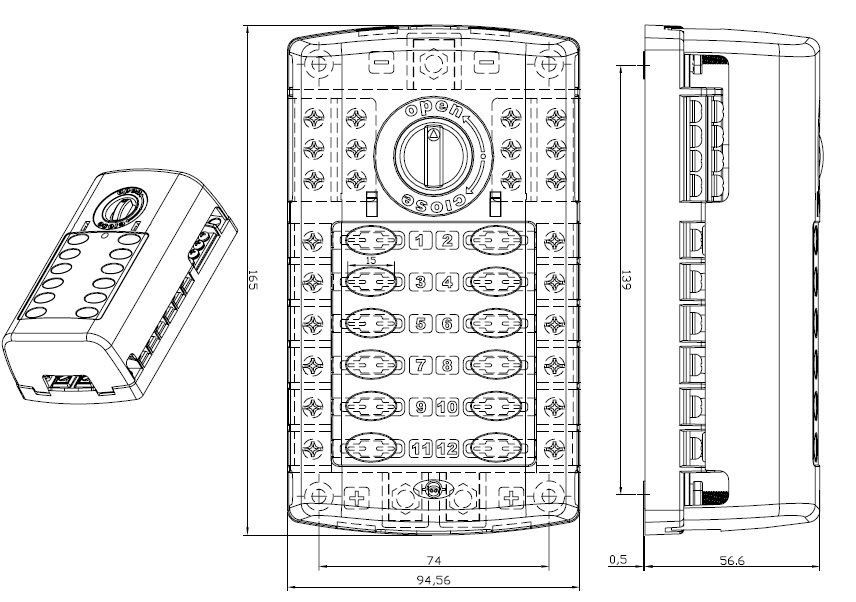

Dimensions: L164 x B95 x D59 mm (including lid) p>
